Electric Brewery - Part3

Veröffentlicht am 28.02.2017

Assembling and wiring g and wiring

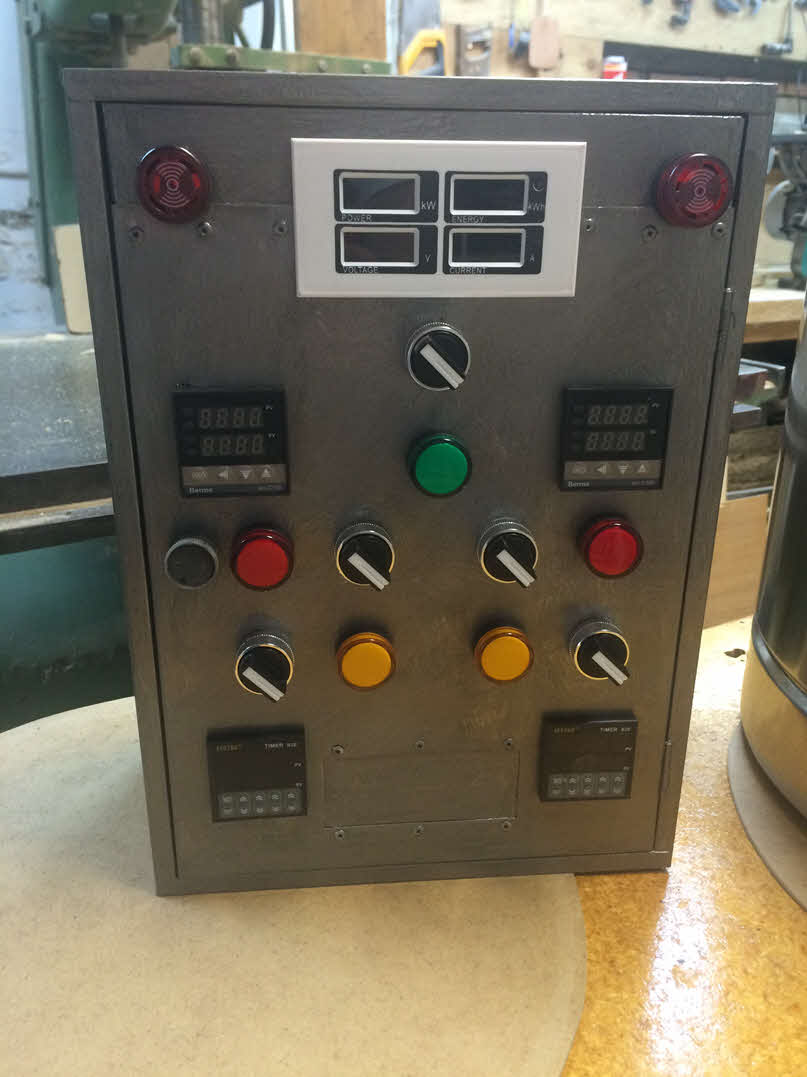

Once the holes were drilled, the "control panel" (Mailbox) was painted and the components assembled.

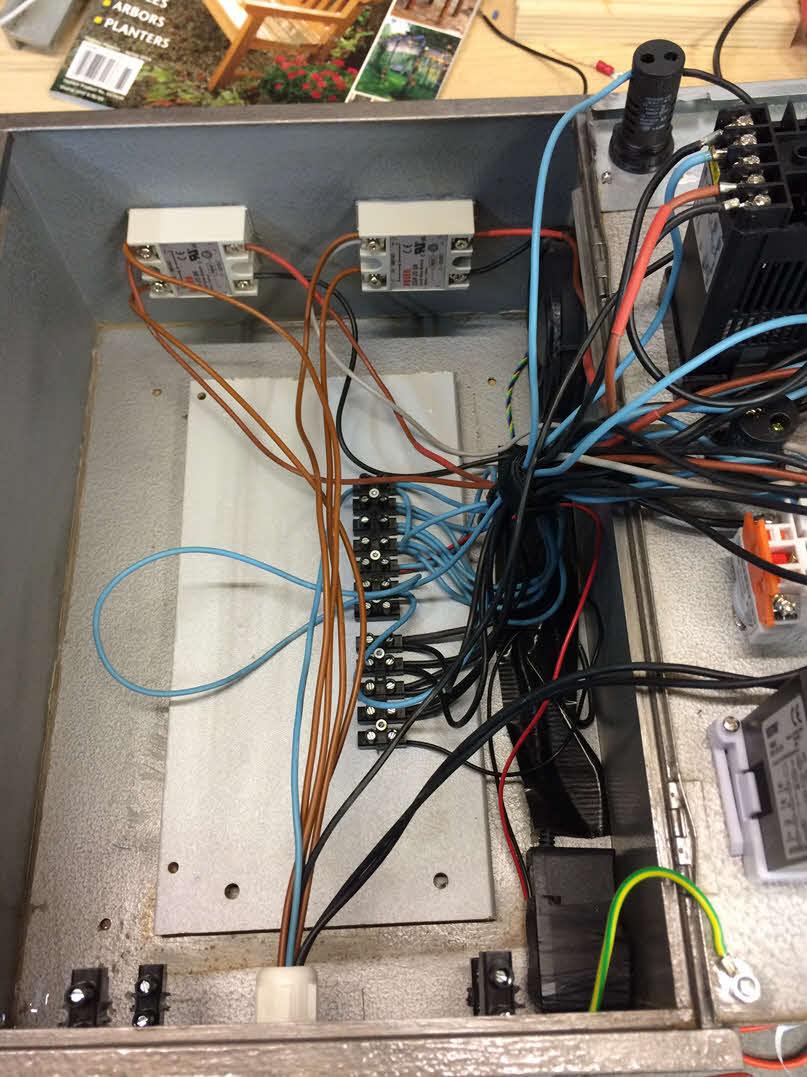

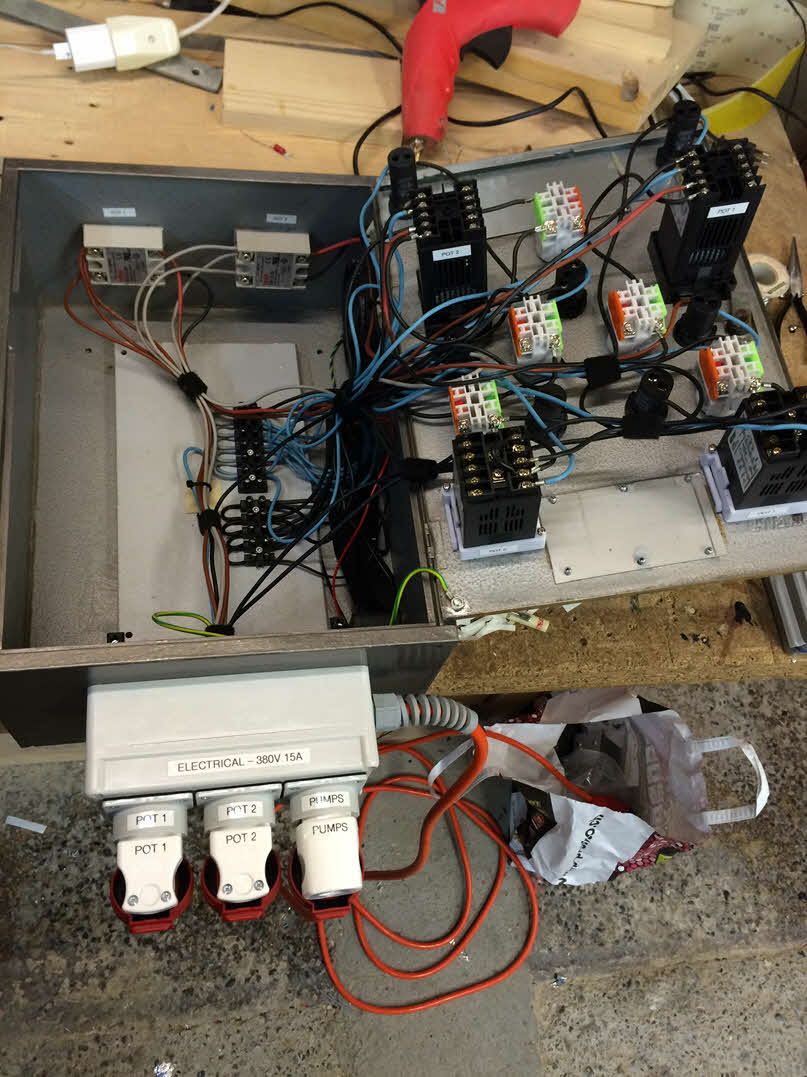

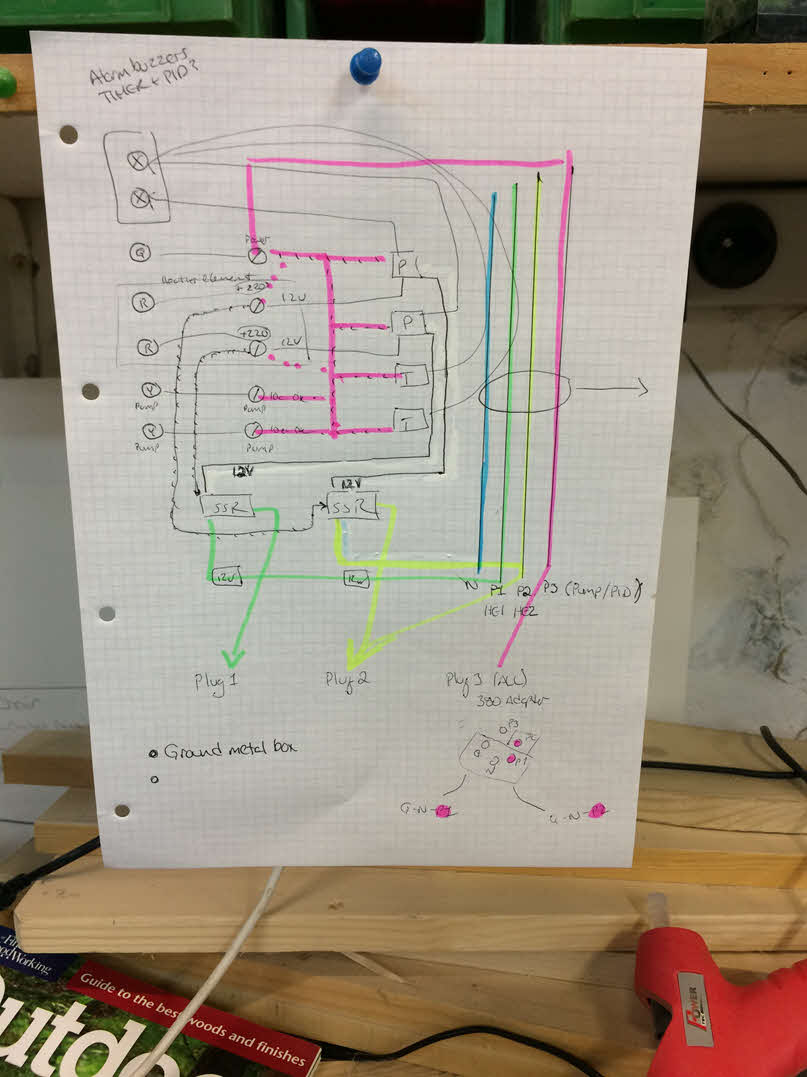

Next, I prepared a wiring diagram and started to put all of the components together.

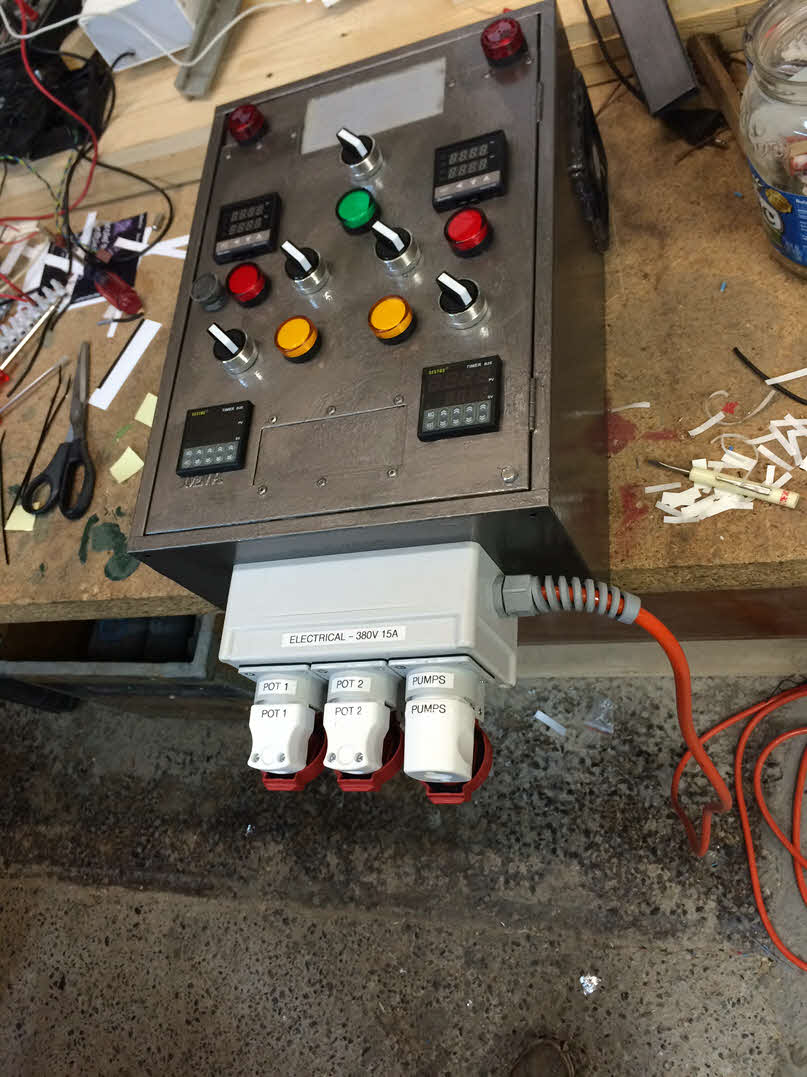

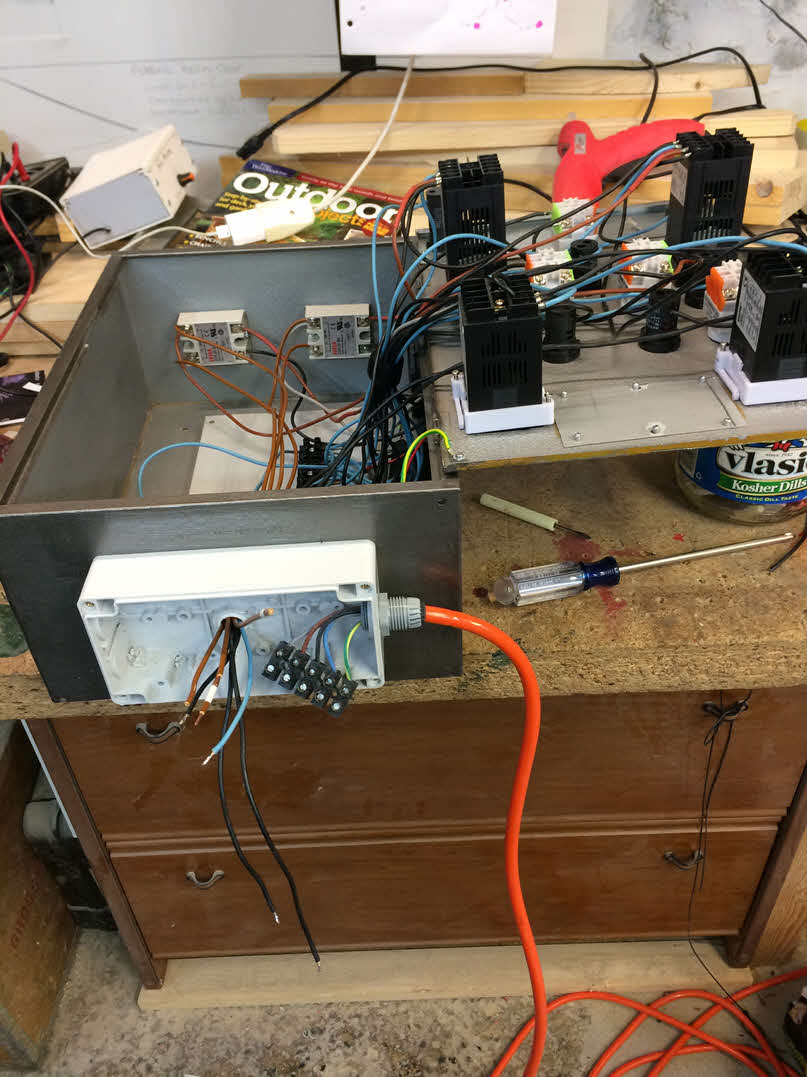

Lastly, I connected the power distributor (25A, 380V power strip)
